CLA-RiSTOR DD 4.1-000

CLA-RiSTOR DD 4.1-000 Application Device – measuring device for classification analysis with TiF-MEMRiSTOR Chip.

With the CLA-RiSTOR you can classify analog signals at the edge, e.g. acoustic signals, neuro signals, ECG signals. CLA-RiSTOR allows for a high accuracy and a high recognition rate in particular for classifying electric signal with a comparatively high noise level.

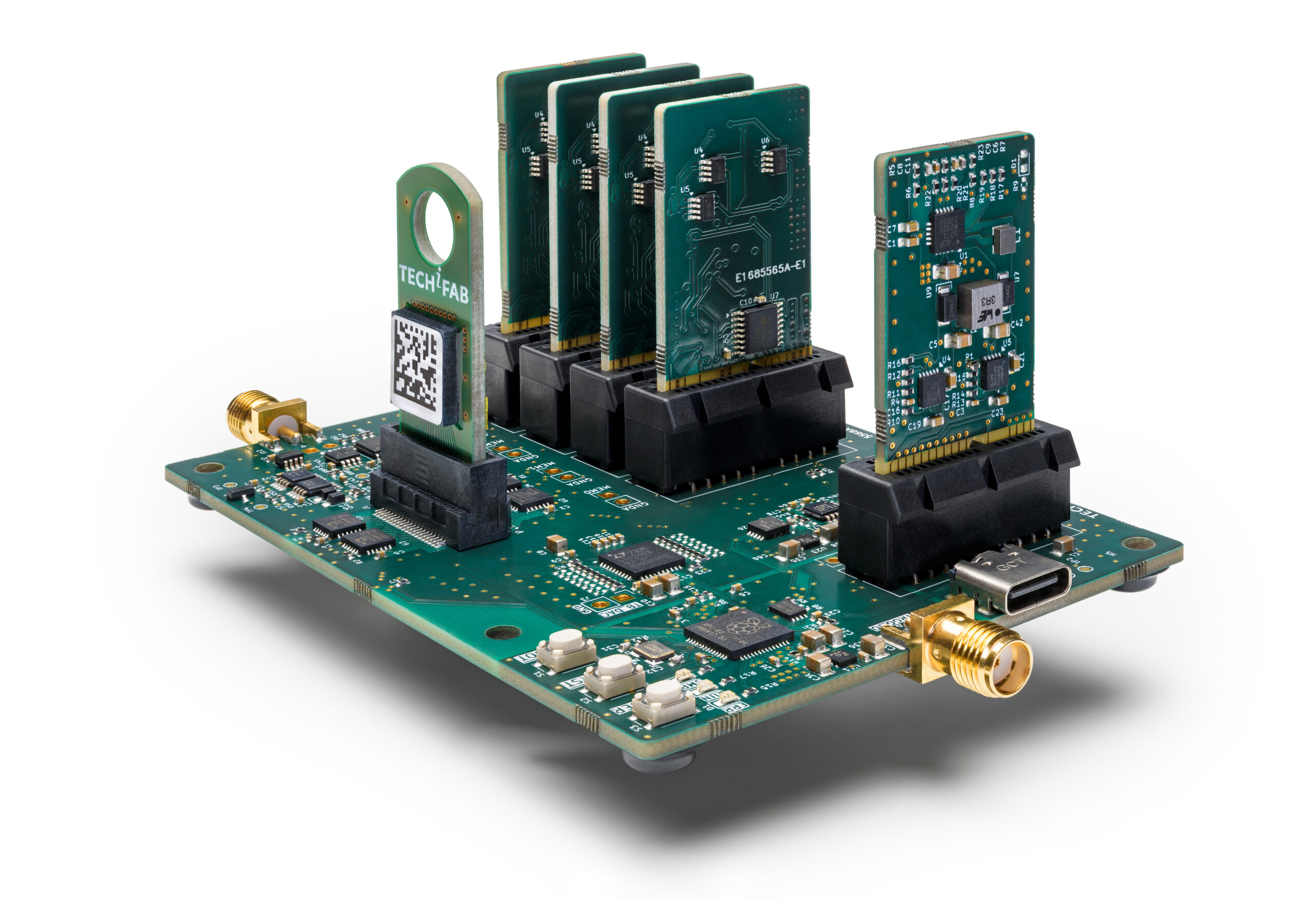

consisting of:

• 1 CLA-RiSTOR Baseboard
• 1 CLA-RiSTOR Plug-In Card “Power Module”
• 4 CLA-RiSTOR Plug-In Cards “Analog Modules”
• 1 Chip-Carrier with TiF-MEMRisTOR Chip
• GUI-Software “CLA-RiSTOR”

Technical data:

• Dimensions: 90 mm x 67 mm x 48 mm / 3,54 x 2,64 x 1,89 inch (LxWxH)
• TIF-MEMRiSTOR Chip Carrier: 1
• CLA-RiSTOR® Plug-In Cards: 4
• Input signal routing to 1..4 out of 32 TiF-MEMRiSTORs
• Configurable U-I delay and analog integration time
• External trigger input: 1
• On-board offset compensation and calibration

not included:

• Software as a Service Package for determining classification parameters
